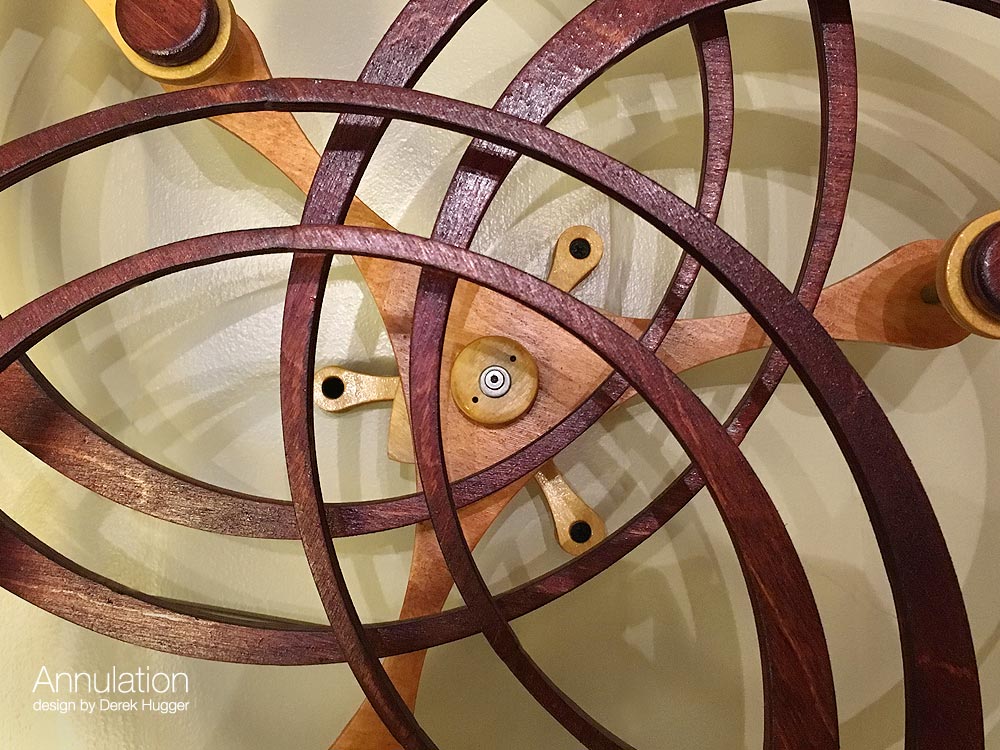

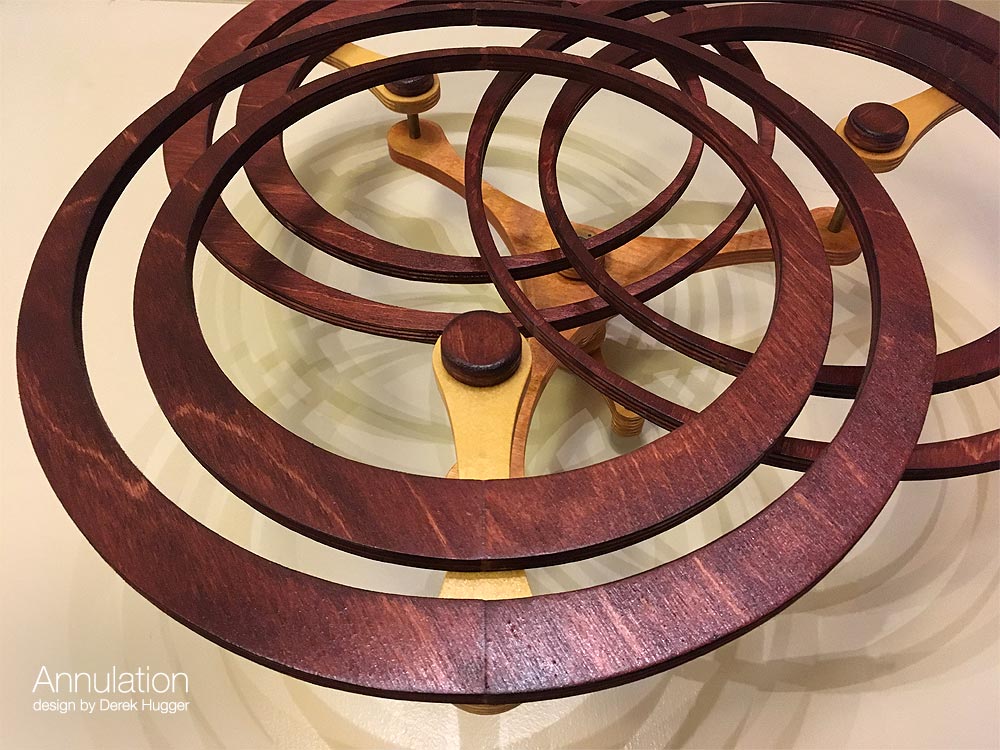

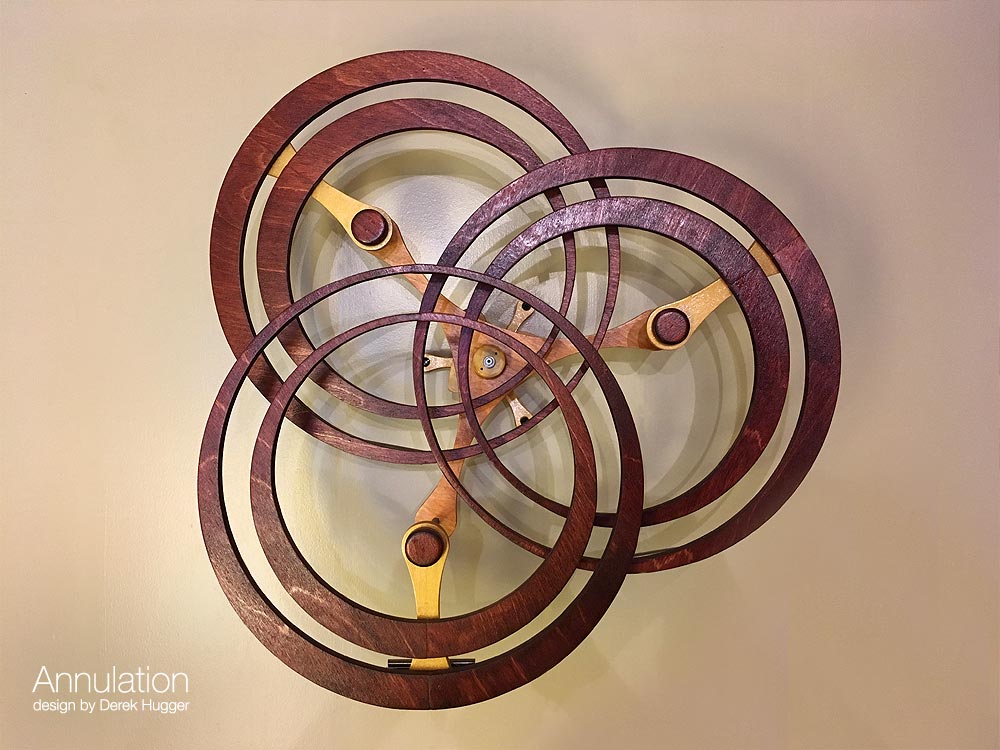

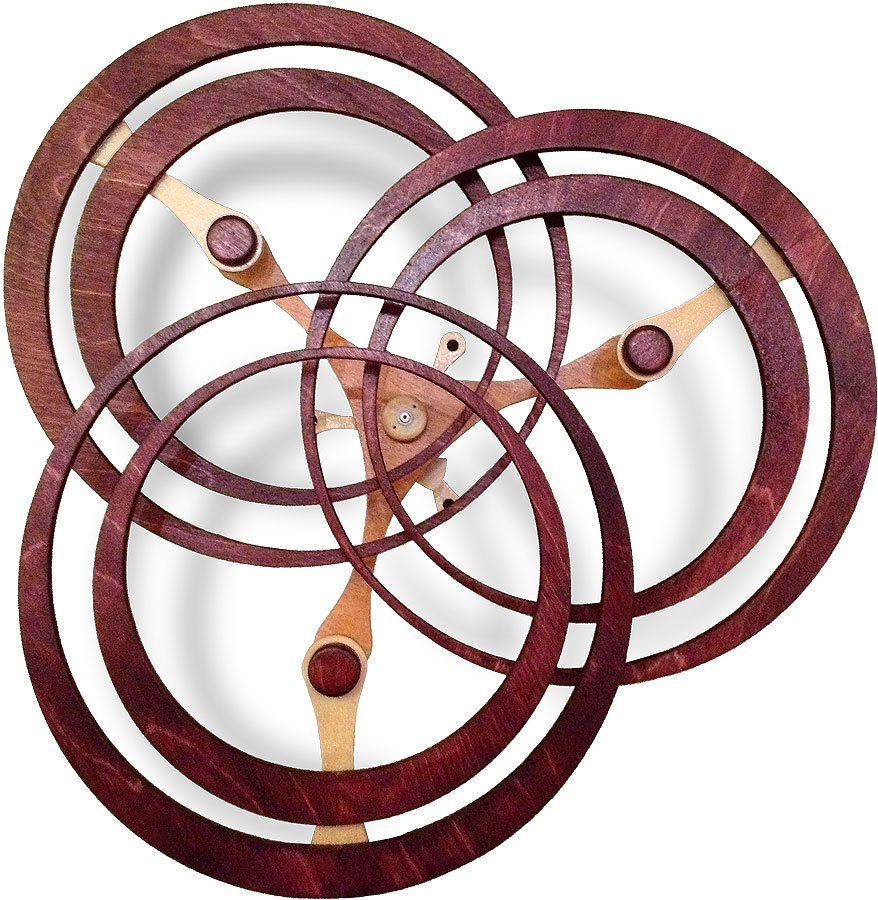

Annulation is a wooden kinetic sculpture that is captivating at rest and mesmerizing in motion. Its rings create an organic illusion of growth and decline as they sway and gyrate. Each moving element of Annulation was designed to be perfectly balanced, both physically and visually.


$39












Controlled Center of Gravity

Each ring assembly's center of gravity (CG) was carefully positioned to be exactly at the assembly's pivot point. This not only allows the three ring assemblies to have common parts, but also allows small weights to be attached in one of three positions behind each outer ring, assigning that ring's orientation in the sculpture.

Ratcheting Escapement

The Ratcheting Escapement allows Annulation's rings to spin freely in one direction but not the other. When the rings begin to turn clockwise, the Ratcheting Escapement allows energy to be released, reversing the rings' directions, sending them spinning counterclockwise.

Orientation Illusions

The combination of carefully managed CGs and ring orientations generates a dynamic visual effect of size and orientation change, when in fact, the rings' orientations relative to each other are not changing at all.

Winding

The mechanism that allows Annulation's rings to turn freely in one direction is the same mechanism that allows it to wind. As the sculpture is wound, energy is stored, and the entire escapement spins freely between the frame and the rings.















Specifications

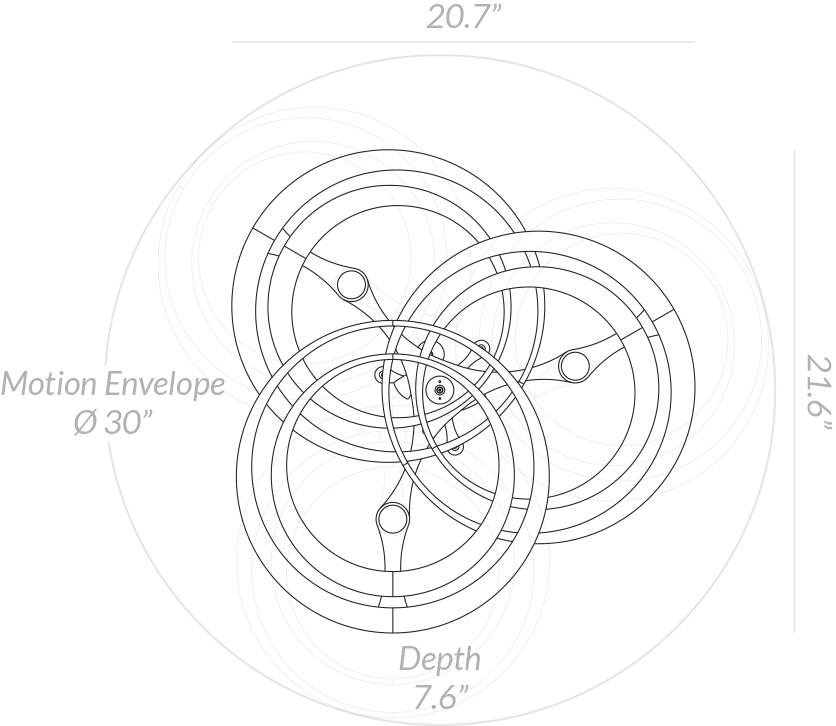

Size 21.6" h x 20.7" w x 7.6" d

Motion Spring Powered

Run Time
 5 - 7 minutes







Free Downloads
Annulation Sample Plans

Annulation Sample DXF

The sample plans are a snippet of the purchased version. They contain a list of the tools needed, specifications for all required hardware, as well as samples of the wood patterns and assembly instructions.

The sample DXF file can be used to test CAM software compatibility. For builders with CNC machines, the purchased version of the plans contains DXF files for all wood patterns.		   Annulation Woodworking Plans

Woodworking plans are delivered digitally via email.
Plans are sold securely through PayPal and are delivered through Payloadz.

Plywood parts can be cut manually with printable patterns in PDF format, or they can be cut with a CNC machine using the included DXF files.

Plans contain two PDF document sizes:
• 8.5" x 11" paper for instructions and small patterns
• 11" x 17" paper for large patterns
$39
